Antennen unter Dach

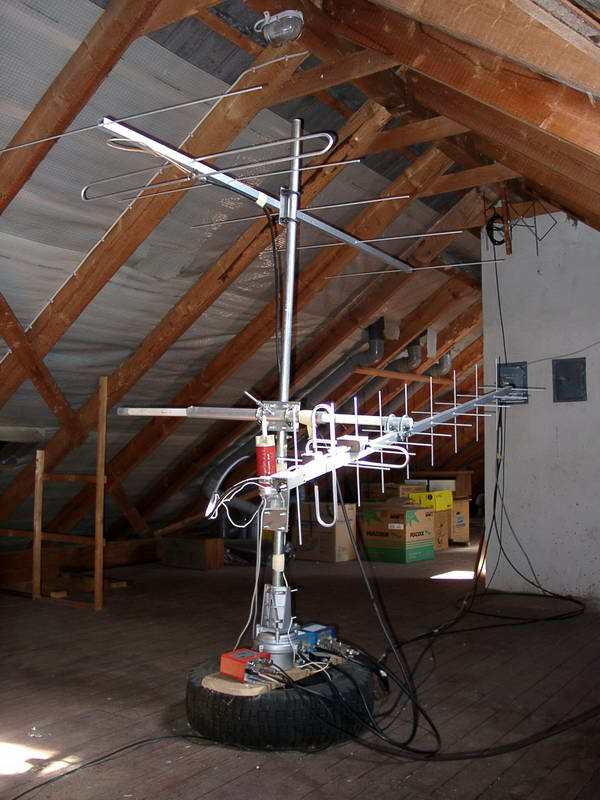

2000-2006
2000-2006

2m: 6ele. own design, no elevation
70cm: 2 x 10ele. DJ9BV, hor./vert. switched, with actuator

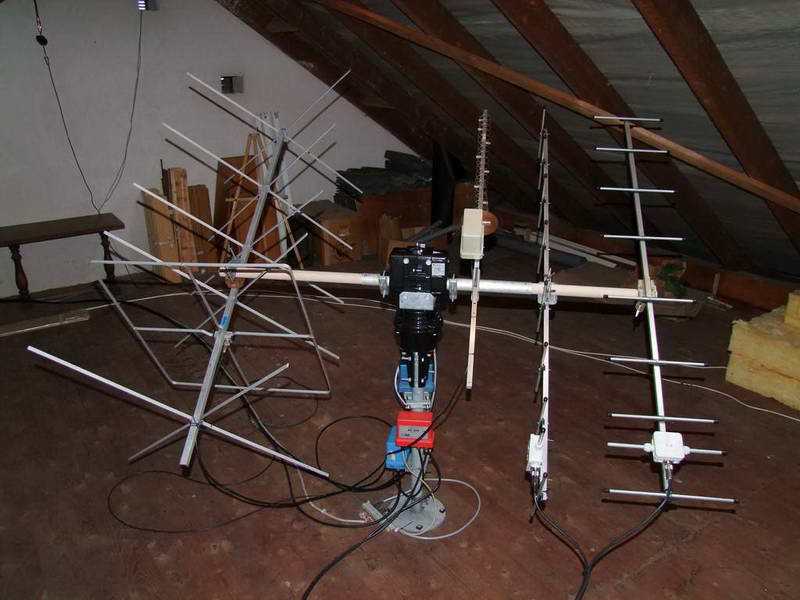

2008-2010
2008-2010

Rotator: Yaesu G5500, full controlled by software

2m: 5ele. WIMO XQuad
70cm: 2x 9ele. DK7ZB, hor./vert. switched
13cm: 19 turn helical

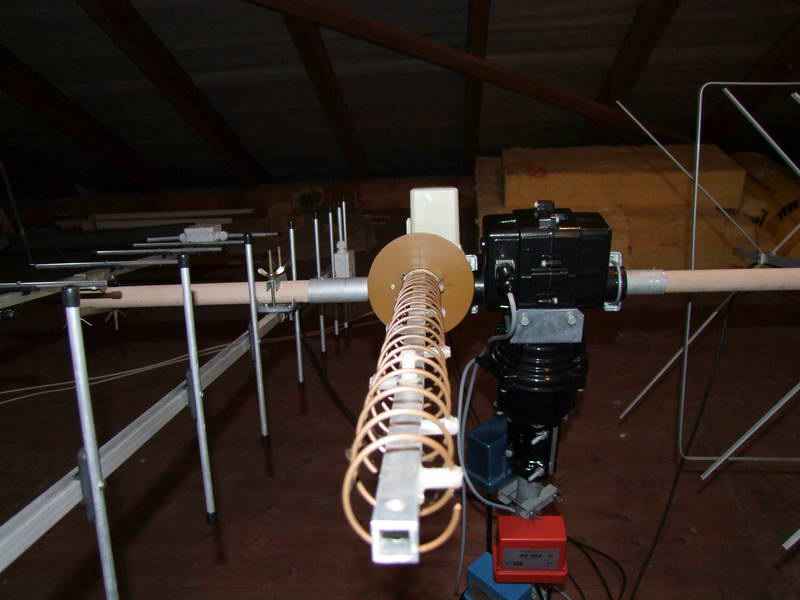

helical front
helical front

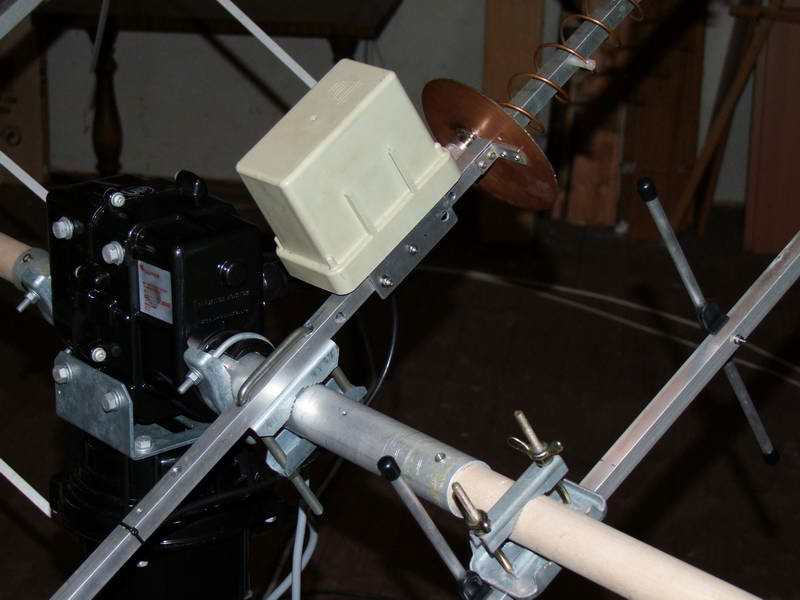

helical mount
helical mount

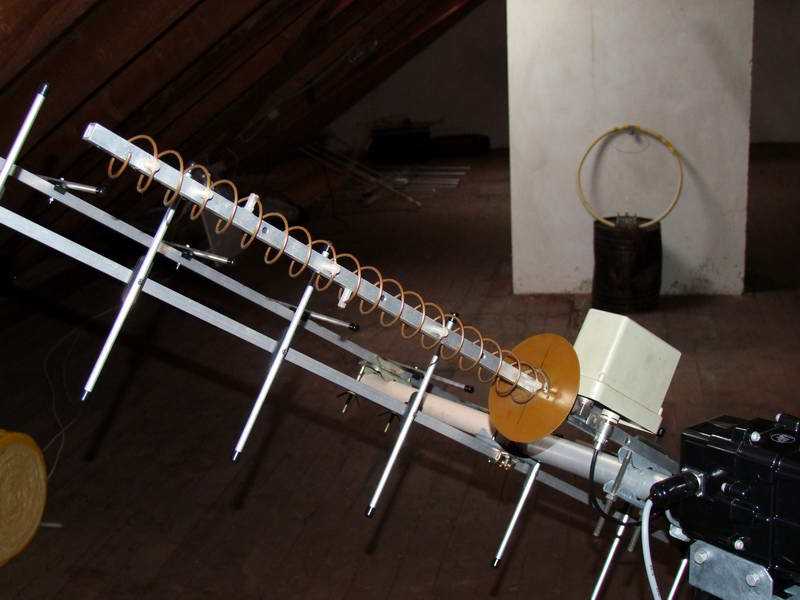

19 turn helical
19 turn helical

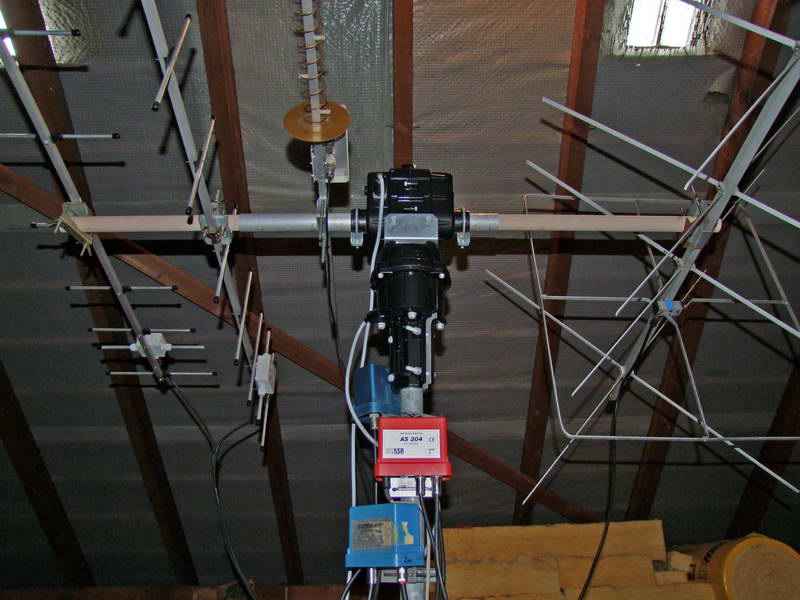

mounting
mounting
